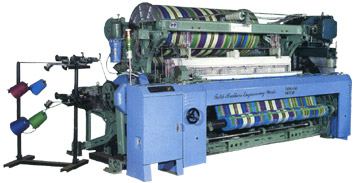

DTM-900T Terry Towel Rapier Loom

Shedding

DTM-900T Series can be fitted with the dobby machine (up to 24 levers). For the dobby shedding. 18 levers are available for healed frames and 6 levers for control functions of higher or lower pile  section, weft selection and take-up stop motion.

Warp Stop Motion

Electric warp stop motion has been used for pile & ground so that loom stops when warp thread is broken.

Selvedge

Independent leno motion ca be employed.

Weft Insertion

The head of the rapier is designed to be adjustable in the gripping strength of the weft yarn according to its type, which ensures safe insertion of the weft yarn. The tape guide on the sley is also ideally engineered for holding the clearance from the top and bottom faces of

the tapes at the optimum state, which prevents the tapes from breaking the warp yarns due to touching on their driving.

Let-Off For Pile Beam

As the letting -off from the pile beam, operated by the electronic pile sensor, is automatically controlled by a separate brake motor and the electronic clutch, the over-tension has the loom stopped safely.

Let-Off For Ground Beam

The letting-off brake wheel, driven by can be connected with the main shaft of the loom, is controlled by the brake lining. The tension lever controlling the warp tension ensures proper letting-off of the ground beam through automatic stop of the loom in the event of abnormal tension by controlling the revolutions of brake lining.

Rapier Drive

The special gear designed for the most stable insertion and high speed drive enable the precise movements of the rapier for weft insertion by means of the minimized rotating clearance of the rapier wheels. This is due to the forward and reverse drive by the LEVER of high tension which are featuring the latest mechanism in structure of its kind.

As a result, the noise & vibration are reduced and the transfer of the weft at a high speed is effected without errors and the weft tension gets evenly maintained.
