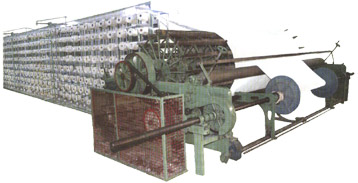

Sectional Warping Machine
Size
72, 80, 90, 100, 110", 120, 130, 140, 150, 190", 200", 210"
Circumference of Drum
4 Meters
Capacity
24 to 50 Looms
Winding System
Drum System
Measuring Meter
In Meters
Beam Flanging Range
Up to 40" Beam Plate Dia
Power Required
For 72, 80 = 7.5HP
For 11O, 150" = 10HP/950RPM
For 160, 180 = 15HP/950RPM
For 190 to 210 = 20HP/950RPM
Driving (Method)
Starting : Manual
Stopping : Automatic
Creel
400 Cones: Cone to Cone Center 10
N-B creels capacity is increasable / decreasabale
Electric Warp Stop Motion
Electric warp stop motion will stop the warping machine
immediately on breakage of warp end.
Brake System
Electronic brake system.
Variable Motor System
a) Warping from 110 to 150
Due to variable Motor of 1450/RPM 1 round to 110 rounds of drum per
minute can be adjusted according to the requirement. Warping Machine is able to warp 440 meters per minute (for a single warp end)
b) Warping from 160 to 190
Due to variable Motor of 1450/RPM 1 round to 85 rounds of drum per
minute can be adjusted according to the requirement. Warping Machine is able to warp 340 meters per minute (for a single warp end)
For Smooth, Efficient and Trouble-Free Service of the Machine, Special Care Should be Taken of its Oiling, Greasing. Proper and Timely Lubrication Increases the Life and Efficiency of the Machine.
