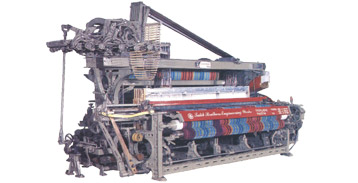

DTM-200T Terry Towel Drop Box Loom
| Size | 76 82 90 96 102 105 |
|
Minimum Loom Speed (RPM) |
120 115 110 105 100 100 |
| Handle Position | Left / Right Hand |
| Taking Up Motion | Pickls Type |
| Picking System | Under Picking |
| Electric Pile Control System |
Positive Let-Off Motion For Pile Beam. Up To 98% Weight & Pile is Controlled |
| Forming Of Pile | Fixed Reed Motion |
| No. Of Heald Frames | Up To 20 Frames |
| Dobby | 12 Levers To 22 Levers Three / Four Cylinder |
| Weight | 1700 KG Of 76 Loom |
| Weft Insertion | 1 x 4 |
| Power For Drive |
(76 To 90) 1.5 HP / 720 RPM (96 To 105) 2 HP / 720 RPM |
