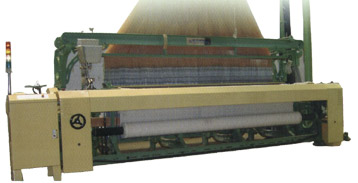

DTM-900J Jacquard Rapier Loom

Shedding

DTM-900J Series can be fitted with the Jacquard Machine.

Warp Stop Motion

Electric warp stop motion has been used so that loom stops when warp thread is broken.

Selvedge

Independent leno motion can be employed.

Weft Insertion

The head of the rapier is designed to be adjustable in the gripping strength of the weft yarn according to its type, which ensures safe insertion of the weft yarn. The tape guide on the sley is also ideally engineered for holding the clearance from the top and bottom faces of the tapes at the optimum state, which prevents the tapes from breaking the warp yarns due to touching on their driving

Let-Off For Ground Beam

The letting-offbrake wheel, driven by can be connected with the main shaft of the loom, is controlled by the brake lining. The tension lever controlling the warp tension ensures proper letting-off of the beam through automatic stop of the loom in the event of abnormal tension by controlling the revolutions of brake lining.

Rapier Drive

The special gear designed for the most stable insertion and high speed drive enable the precise movements of the rapier for weft insertion by means of the minimized rotating clearance of the rapier wheels. This is due to the forward and reverse drive by the LEVER of high tension which are featuring the latest mechanism in structure of its kind. As a result, the noise & vibration are reduced and the transfer of the weft at a high speed is effected without errors and the weft tension gets evenly maintained.
