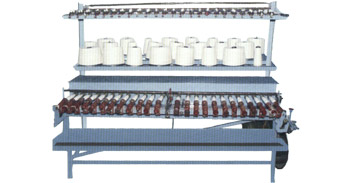

Horizontal Weft Pirn Winder
|
|
Length |
Width |
Height |
|
08 Spindles |
30" |
50" |
63" |
|
12 Spindles |
42" |
50" |
63" |
|
16 Spindles |
54" |
50" |
63" |
|
24 Spindles |
72" |
50" |
63" |
|
Mobil Oil to Add |
08 Spindles |
12 Spindles |
16 Spindles |
24 Spindles |
|
Mobil Oil to Add |
03 Litters |
4.5 Litres |
06 Litres |
08 Litres |
Note: First time mobil oil should be changed after 06 months thereafter a period of one year.
2.40 No. Diesel Oil should be used.
|
Power to Drive: |
1 HP/950 RPM |
|
Motor Pulley: |
4" Pulley has been fitted to Machine. |
|
V. Belt: |
A-44/45 |
|
Machine Rounds: |
Should be Clockwise. |
|
Installation: |
On even and plain Floor. |
|
Stop Motion: |
Stop Motion has been fitted with starter. |
|
Motor Stand: |
Motor Stand has been fitted on the Machine. |
|
Cones: |
Cone Tray is fitted on the back side of the Machine. |
|
Winded Bobbins: |
To put Winded Bobbins a box has been fitted in front of the Machine. |
|
Tension Motion: |
Tension Motions have been kept in un-fitted condition on the top of the machine which should be fitted at the time of installation. |
Note
For smooth and trouble free service of the Machine, Special care should be taken towards cleanliness, proper and timely Lubrication which increases the life and efficiency of the Machine.
