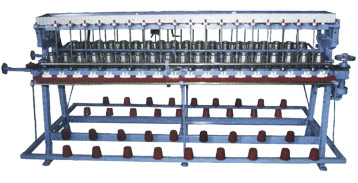

Vertical Weft Pirn Winder
Specifications
i. Basically we Manufacture Pirn Winders of two Kinds.
|
1- One-Sided It Carries Spindles on its one side only and may be installed even Close to the wall. it occupies little space than that of the double sided. |
|
|
1- Double-Sided it carries double time spindles on its both sides. than that of one sided. |
ii. COP Capacity
| 12,15,18,20,24,25,30,32,36,40.& 50. |
iii. Size (in inches).
|
Length |
Width |
||
|
1. |
24 Spindles Big Bowls |
95" |
48" |
|
2. |
30 = = |
103" |
48" |
|
3. |
32 Spindles Medium Bowls |
112" |
48" |
|
4. |
36 = = |
103" |
48" |
|
5. |
18 Spindles Small Bowls |
95" |
38" |
|
6. |
20 = = |
103" |
38" |
|
7. |
25 = = |
122" |
38" |
|
8. |
36 = = |
95" |
48" |
|
9. |
40 = = |
118" |
48" |
|
10. |
50 = = |
122" |
48" |
To operate Spindles of Single Side only one V-BELT is used while for either sides two V-BELTS are used likewise with the help of Motor Pulley Both sides can be operated separately. If working of one side spindles is required to be stopped. Then V-BELT of that side should be Dejoined. The spindles of other side would remain Functioning.
Driving Power
|
1. |
12 to 36 spindles |
…. |
1HP.950 R.P.M |
|
2. |
36 spindles and above |
…. |
1.5HP.950 R.P.M |
