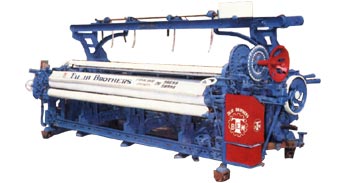

Automatic COP-Change Loom
Specifications
|
Model/Size |
56 76 85 105 120 |
|
Loom Speed (R.P.M) |
160, 140, 124, 115, 110 |
|
COP-Change System |
Rotary Type Hopper Magazine |
|
Hopper Capacity |
24 Cops |
|
Handle Position |
Left Hand |
|
Picking System |
Under Pickls Type |
|
Taking-Up Motion |
Pickls Type |
|
Warp Rrotector |
Loose Reed System |
|
Shading Motion |
Tappet System |
|
Shuttle Size |
56 to 76 = 390 M.M. |
|
|
85 to 105 = 410 M.M. |
|
|
120 = 430 M.M. |
|
Pirn Size |
56 to 76 = 190 M.M. |
|
|
85 to 105 = 210 M.M. |
|
|
120 = 230 M.M. |
|
Driving System |
Fixed Driving Wheel |
|
Power to Drive |
1HP/ 950 R.P.M. For 56 to 85 Size |
|
|
1.5HP/720 R.P.M. For 105 to 120 Size |
|
|
|
Note
For Smooth, Efficient and Trouble-Free Service of the Loom, Special Care Should be Taken of its Oiling, Greasing and Cleanliness. Proper and Timely Lubrication Increases the Loom Life and its Efficiency.
